IDAS™ Digital Mode Operation

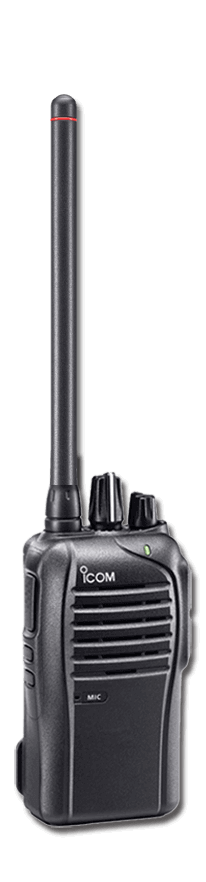

The IC-F3210D series provides NXDN™ CAI-based IDAS digital mode operation. It is compatible with IDAS multi-site and single-site trunking and IDAS multi-site conventional.
Easy to Hear in Noisy Areas
The built-in bridge-tied load (BTL) amplifier delivers a powerful 800mW* audio output from the large 45mm speaker. In addition, the digital modulation provides distinct clarity even at the fringes of the communication range.
*Typical with internal speaker.
Channel Announcement
When you rotate the channel knob, the radio announces the channel number. Convenient for making radio adjustments without having to look at the radio.
Frequency band:
VHF, UHF
Frequency range:
F3210D: 136–174MHz, F4210D: 400-470MHz, 450-512MHz
Power Output:
F3210D: 5W
F4210D: 4W
Standard battery chemistry type:
Li-ion
Battery life (based on a 5-5-90 duty cycle):
19/17 hours (VHF/UHF)
Number of Channels/Groups/Zones:
16 Channels
Channel spacing:
15 / 12.5 / 6.25 kHz
Dimensions H x W x D (with standard battery)
58(cW) × 111.5(H) × 36.5(D) mm; 2.28×4.39×1.44in
Weight (with standard battery)
320g; 11.3oz
Keypad / Keys
None
Display
None
Operating temperature
-30°C to +60°C; -22°F to +140°F
Mil spec
810-C, -D, -E, -F, -G.
IP Standards
IP54
Longer Operating Time
The Li-ion battery pack, BP-265 (7.4V, 2000mAh typ.), provides 17.5/16 hours* of operating time. Even when used with the BP-264, the radio offers 12/11 hours* of operating time.
*VHF/UHF, Tx:Rx:Standby=5:5:90. Power save function ON.
Weather Resistant, Military Rugged
While the radio is compact and lightweight, the radio is tested to dust protection and water-resistant equivalent to IP54 and 11 categories of MIL-STD-810 environmental tests. In short, the IC-F3210D series is built rugged!
Internal VOX Capability
The radio has the internal VOX capability for hands-free operation. Optional compatible headset with plug adapter cable OPC-2004 can be used with the radio. Also, the VOX gain and VOX delay time are adjustable.
Roaming Scan
In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.
IDAS™ Digital Mode Features
*TX: Transmit, RX: Receive
Other Features
(* = analog only)
 | FASC25U 400-430MHz Antenna for LM portables |
 | FASC25V 136-150MHz Antenna for LM portables |
 | FASC26US 400-450MHz Stubby antenna for LM portables |
 | FASC26VS 136-144MHz Stubby antenna for LM portables |
 | FASC27VS 142-150MHz Stubby antenna for LM portables |
 | FASC28V 142-162MHz Antenna for LM portables |
 | FASC29V 160-174MHz Antenna for LM portables |
 | FASC55V 146-174MHz Standard antenna for LM portables |
 | FASC56VS 150-160MHz Stubby antenna for LM portables |
 | FASC57U 430-470MHz Standard antenna for LM radios (red ring) |
 | FASC57VS 160-174MHz Stubby antenna for LM portables |
| FASC61UC 380-520MHz Cut antenna for the specific frequency desired |
| FASC61VC 136-174MHz Cut antenna for the specific frequency desired |
| FASC62V 150-160MHz High gain antenna for LM portables (10") |
| FASC63V 155-165MHz High gain antenna for LM portables (9.5") |
 | FASC72U 470-512MHz Antenna for LM portables |
 | FASC73US 450-470MHz Stubby antenna for LM portable radios |
| LARSEN SPHL10160IC 151-163MHz Helical ¼ wave antenna center tuned to 157MHz |
 | BP263 Battery case that holds 6 AA alkaline batteries |
 | BP265 Battery Li-ion 7.4V 1900mAh |
 | MB124 Alligator-type belt clip |
 | OPC515L DC power cable for single-unit rapid chargers |
 | OPC656 DC power cable for gang charger |
 | AD121 Adapter cup that fits into the BC197 12/13 for the BP265 Li-ion battery |
| BC123SA AC adapter for rapid chargers |
 | BC157S AC adapter for gang chargers |
 | BC193 Rapid charger for radios with BP265 Li-ion battery |
 | BC197 12 110-240V 6-unit charger for radios with the BP265 Li-ion battery |
 | CP23L 12V cigarette lighter cable for use with rapid chargers |
 | MB130 Vehicle charger bracket holds rapid charger and requires cigarette lighter cable |
 | HS94 Earpiece headset |
 | HS95 Headset with boom microphone |
 | HS97 Earphone with throat mic headset |
 | OPC2004 Adapter plug to to use the HS94/95/97 for F3001/4001/3101D/4101D & V80 radios |
| HM-HD7I7WP Large waterproof speaker microphone with 3.5mm accessory jack |
 | HM158LA Compact speaker microphone with revolving clip and earphone jack |
 | HM159LA Large speaker microphone with earphone jack and metal alligator clip |
 | HM171GP GPS speaker microphone for F3101D/4101D series |
| IMPACT HD3-I3 Heavy duty speaker microhpone with 3.5mm accessory jack (2-pin screw down connector) |
 | SP27 Acoustic tube earphone with a clip (3.5mm) |
 | HM128L Speaker microhpone with GPS receiver. |
| HM128L Earphone/microphone with 2-pin right angle connector |
| HM153LA Covert durable microphone with earphone combination |
